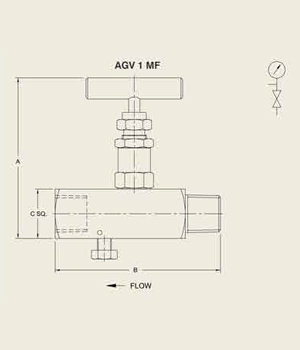

These valves are designed for safe installations of Pressure gauges. The suitable model can be selected for isolation, calibration or drain purpose.
| STANDARD SPECIFICATION: | ||
|---|---|---|
| End Connection | : ½" NPT / G ½ / ½" BSPT | |
| Maximum working pressure | : 413 bar / 6000 PSI at 100°C | |
| Material | : 316 SS / 316L SS / 304 SS / Carbon steel | |
| Gland Packing | : PTFE / Graphite | |
| WEIGHT | : 0.530 kg | |
| MOC in accordance with NACE MR0175 is available on request. | ||
| Monel, Inconel, Hastelloy, Duplex steel are also available on request. | ||
|

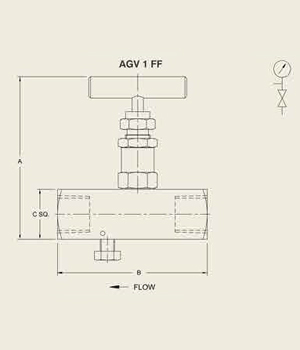

SIZE
|
A
|
B
|
B SQ.
|
WEIGHT (kg)
|
|
1/4"
|
93
|
70
|
25
|
0.43
|
|
3/8"
|
93
|
70
|
25
|
0.43
|
|
1/2"
|
93
|
80
|
28
|
0.53
|

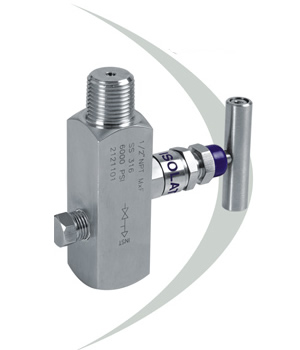

These valves are designed for safe installations of Pressure gauges. The suitable model can be selected for isolation, calibration or drain purpose.
| STANDARD SPECIFICATION: | ||
|---|---|---|
| WEIGHT | : 0.60 kg | |
|
SIZE
|
A
|
B
|
B SQ.
|
WEIGHT (kg)
|
|
1/4"
|
93
|
75
|
25
|
0.50
|
|
3/8"
|
93
|
75
|
25
|
0.50
|
|
1/2"
|
93
|
94
|
28
|
0.60
|

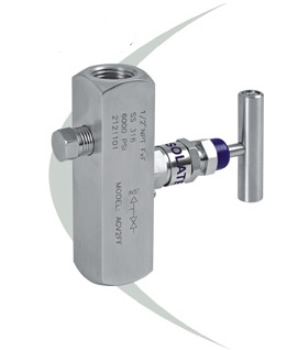

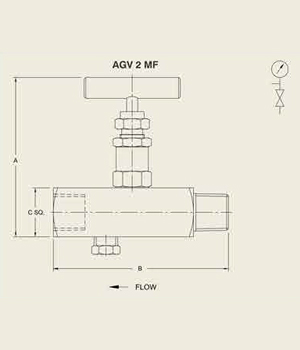

These valves are designed for safe installations of Pressure gauges. The suitable model can be selected for isolation, calibration or drain purpose.
| STANDARD SPECIFICATION: | ||
|---|---|---|
| End Connection | : ½" NPT / G ½ / ½" BSPT | |
| Maximum working pressure | : 413 bar / 6000 PSI at 100°C | |
| Material | : 316 SS / 316L SS / 304 SS / Carbon steel | |
| Gland Packing | : PTFE / Graphite | |
| WEIGHT | : 0.55 kg | |
| MOC in accordance with NACE MR0175 is available on request. | ||
| Monel, Inconel, Hastelloy, Duplex steel are also available on request. | ||
|
SIZE
|
A
|
B
|
B SQ.
|
WEIGHT (kg)
|
|
1/4"
|
93
|
80
|
25
|
0.45
|
|
3/8"
|
93
|
80
|
25
|
0.45
|
|
1/2"
|
95
|
90
|
28
|
0.55
|
These valves are designed for safe installations of Pressure gauges. The suitable model can be selected for isolation, calibration or drain purpose.
| STANDARD SPECIFICATION: | ||
|---|---|---|
| WEIGHT | : 0.60 kg | |
|
SIZE
|
A
|
B
|
B SQ.
|
WEIGHT (kg)
|
|
1/4"
|
93
|
80
|
25
|
0.50
|
|
3/8"
|
93
|
80
|
25
|
0.50
|
|
1/2"
|
95
|
100
|
28
|
0.60
|

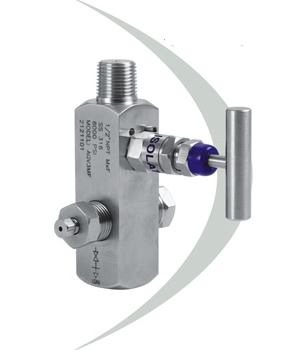

Multiport or gauge root values facilitate different positioning of Pressure gauge or Pressure switch without disturbing the main line. The blind plug & the vent plug are supplied with the valve.
| STANDARD SPECIFICATION: | ||
|---|---|---|
| End Connection | : NPT / BSPP / BSPT | |
| Maximum working pressure | : 413 bar / 6000 PSI at 100°C | |
| Material | : 316 SS / 316L SS / 304 SS / Carbon steel | |
| Gland Packing | : PTFE / Graphite | |
| Inlet | : ½" or ¾" NPT male or ½" NPT Female | |
| Outlet | : ½" NPT F x 3 | |
| Weight | : 0.95 kg | |
| MOC in accordance with NACE MR0175 is available on request. | ||
| Monel, Inconel, Hastelloy, Duplex steel are also available on request. | ||

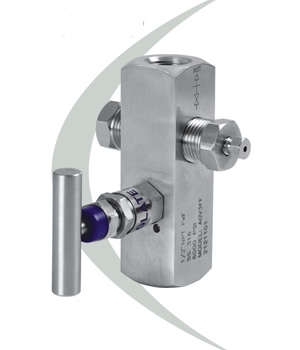

Multiport or gauge root values facilitate different positioning of Pressure gauge or Pressure switch without disturbing the main line. The blind plug & the vent plug are supplied with the valve.
| STANDARD SPECIFICATION: | Weight | : 0.95 kg |
|---|---|---|

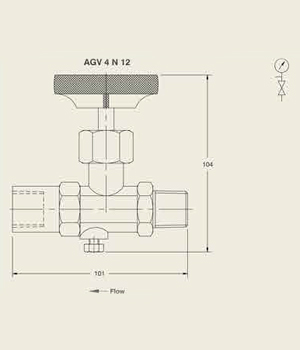

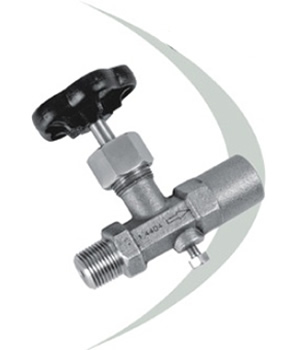

These valves are specially designed in accordance with DIN 16270. The body is forged in union bonnet pattern. The G ½ connection provides swivel female outlet for suitable positioning of Pressure gauge. Bleed screw is provided for Vent.
| STANDARD SPECIFICATION: | ||
|---|---|---|
| Maximum working pressure | : 413 bar / 6000 PSI at 100°C | |
| Material | : 316 SS / 316L SS / 304 SS / Carbon steel / Brass | |
| Gland Packing | : PTFE / Graphite | Weight | : 0.50 kg |
These valves are specially designed in accordance with DIN 16270. The body is forged in union bonnet pattern. The G ½ connection provides swivel female outlet for suitable positioning of Pressure gauge. Bleed screw is provided for Vent.
| STANDARD SPECIFICATION: | Weight | : 0.50 kg |
|---|---|---|
