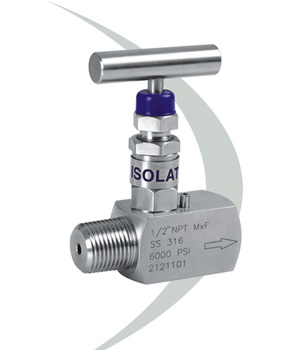

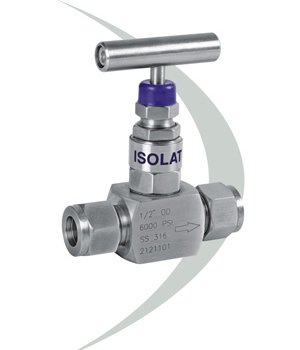

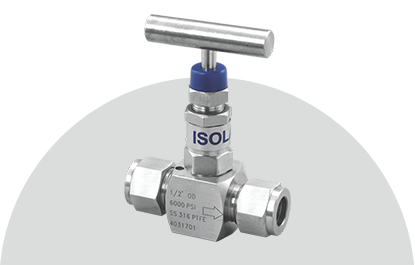

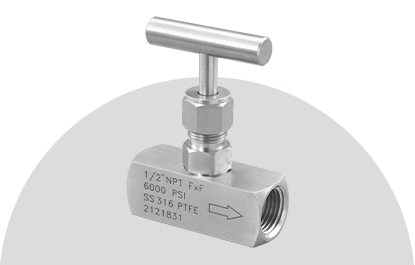

These needle valves are an ideal option for isolating or throttling applications. The self centering, non rotating stem ensures perfect seating. The rigid design gives repetitive bubble tight shut off, easy.
| STANDARD SPECIFICATION: | ||
|---|---|---|
| End Connection | : NPT / BSPP / BSPT | |
| Maximum working pressure | : 413 bar / 6000 PSI at 100°C | |
| Material | : 316 SS / 316L SS / 304 SS / Carbon steel | |
| Gland Packing | : PTFE / Graphite | |
| MOC in accordance with NACE MR0175 is available on request. | ||
| Monel, Inconel, Hastelloy, Duplex steel are also available on request. | ||
|
SIZE
|
A
|
B
|
CSQ
|
WEIGHT (kg)
|
|
1/4"
|
93
|
55
|
25
|
0.36
|
|
3/8"
|
93
|
55
|
25
|
0.37
|
|
1/2"
|
95
|
66
|
28
|
0.46
|
|
3/4"
|
109
|
70
|
38
|
0.8
|
|
1"
|
117
|
80
|
45
|
1.3
|
These needle valves are an ideal option for isolating or throttling applications. The self centering, non rotating stem ensures perfect seating. The rigid design gives repetitive bubble tight shut off, easy.
|
SIZE
|
A
|
B
|
CSQ
|
WEIGHT (kg)
|
|
1/4"
|
93
|
65
|
25
|
0.45
|
|
3/8"
|
93
|
65
|
25
|
0.45
|
|
1/2"
|
95
|
76
|
28
|
0.56
|
|
3/4"
|
109
|
80
|
38
|
0.9
|
|
1"
|
117
|
95
|
45
|
1.4
|
These needle valves are an ideal option for isolating or throttling applications. The self centering, non rotating stem ensures perfect seating. The rigid design gives repetitive bubble tight shut off, easy.
|
SIZE
|
A
|
B
|
CSQ
|
WEIGHT (kg)
|
|
1/4"
|
93
|
65
|
25
|
0.4
|
|
3/8"
|
93
|
65
|
25
|
0.4
|
|
1/2"
|
95
|
76
|
28
|
0.5
|
|
3/4"
|
109
|
80
|
38
|
0.8
|
|
1"
|
117
|
95
|
45
|
1.3
|
These needle valves are an ideal option for isolating or throttling applications. The self centering, non rotating stem ensures perfect seating. The rigid design gives repetitive bubble tight shut off, easy.
|
SIZE
|
A
|
B
|
CSQ
|
WEIGHT (kg)
|
|
1/4"
|
93
|
70
|
25
|
0.3
|
|
3/8"
|
93
|
72
|
25
|
0.32
|
|
1/2"
|
95
|
76
|
28
|
0.4
|
|
6mm
|
93
|
70
|
25
|
0.3
|
|
10mm
|
93
|
72
|
25
|
0.4
|
|
12mm
|
95
|
76
|
28
|
0.4
|
These valves provide economical & reliable option for isolation & throttling applications. The bonnet assembly has a compact design with one piece rotating stem which is V tipped for accurate flow control.
| STANDARD SPECIFICATION: | ||
|---|---|---|
| End Connection | : NPT / BSPP / BSPT | |
| Maximum working pressure | : 413 bar / 6000 PSI at 100°C | |
| Material | : 316 SS / 316L SS / 304 SS / Carbon steel | |
| Gland Packing | : PTFE / Graphite | |
| MOC in accordance with NACE MR0175 is available on request. | ||
| Monel, Inconel, Hastelloy, Duplex steel are also available on request. | ||
|
SIZE
|
A
|
B
|
CSQ
|
WEIGHT (kg)
|
|
1/4"
|
90
|
55
|
25
|
0.4
|
|
3/8"
|
90
|
55
|
25
|
0.4
|
|
1/2"
|
93
|
66
|
28
|
0.5
|
|
3/4"
|
100
|
70
|
38
|
0.8
|
|
1"
|
100
|
80
|
45
|
1.4
|
These valves provide economical & reliable option for isolation & throttling applications. The bonnet assembly has a compact design with one piece rotating stem which is V tipped for accurate flow control.
|
SIZE
|
A
|
B
|
CSQ
|
WEIGHT (kg)
|
|
1/4"
|
90
|
65
|
25
|
0.45
|
|
3/8"
|
90
|
65
|
25
|
0.45
|
|
1/2"
|
93
|
76
|
28
|
0.56
|
|
3/4"
|
100
|
80
|
38
|
0.9
|
|
1"
|
100
|
95
|
45
|
1.5
|
These valves provide economical & reliable option for isolation & throttling applications. The bonnet assembly has a compact design with one piece rotating stem which is V tipped for accurate flow control.
|
SIZE
|
A
|
B
|
CSQ
|
WEIGHT (kg)
|
|
1/4"
|
90
|
65
|
25
|
0.45
|
|
3/8"
|
90
|
65
|
25
|
0.45
|
|
1/2"
|
93
|
76
|
28
|
0.56
|
|
3/4"
|
100
|
80
|
38
|
0.9
|
|
1"
|
110
|
95
|
45
|
1.4
|

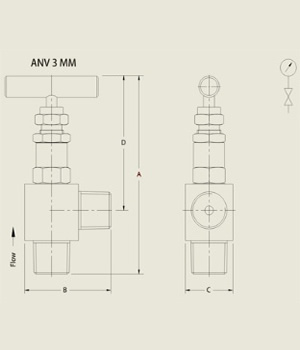

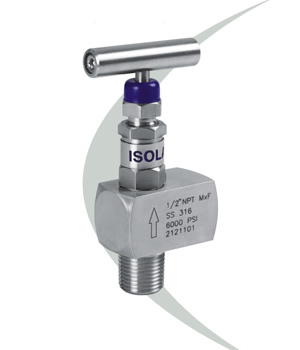

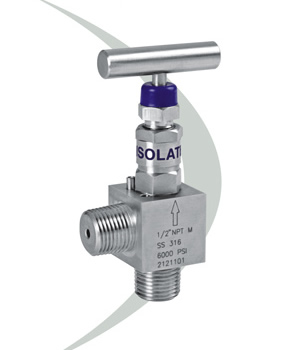

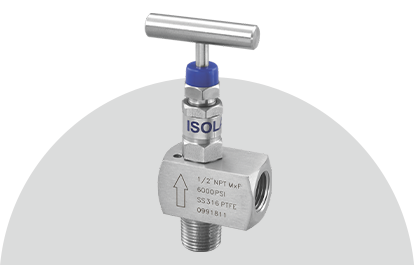

These valves provide angular end connections of 90 degree for specific application. The other design features for this applications are similar to type ANV 1.
| STANDARD SPECIFICATION: | ||
|---|---|---|
| End Connection | : NPT / BSPP / BSPT | |
| Maximum working pressure | : 413 bar / 6000 PSI at 100°C | |
| Material | : 316 SS / 316L SS / 304 SS / Carbon steel | |
| Gland Packing | : PTFE / Graphite | |
| MOC in accordance with NACE MR0175 is available on request. | ||
| Monel, Inconel, Hastelloy, Duplex steel are also available on request. | ||
|
SIZE
|
A
|
B
|
C
|
D
|
WEIGHT (kg)
|
|
1/4"
|
101
|
38
|
25
|
76
|
0.45
|
|
3/8"
|
101
|
38
|
25
|
76
|
0.45
|
|
1/2"
|
115
|
50
|
28
|
76
|
0.575
|
These valves provide angular end connections of 90 degree for specific application. The other design features for this applications are similar to type ANV 1.
|
SIZE
|
A
|
B
|
C
|
D
|
WEIGHT (kg)
|
|
1/4"
|
101
|
38
|
25
|
76
|
0.45
|
|
3/8"
|
101
|
38
|
25
|
76
|
0.45
|
|
1/2"
|
115
|
50
|
28
|
76
|
0.575
|
These valves provide angular end connections of 90 degree for specific application. The other design features for this applications are similar to type ANV 1.
|
SIZE
|
A
|
B
|
C
|
D
|
WEIGHT (kg)
|
|
1/4"
|
101
|
38
|
25
|
76
|
0.45
|
|
3/8"
|
101
|
38
|
25
|
76
|
0.45
|
|
1/2"
|
115
|
50
|
28
|
76
|
0.575
|

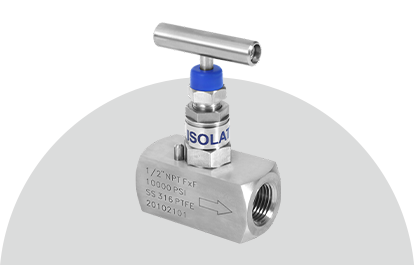

These valves are designed for high pressure applications. These valves are also used in high pressure testing equipments. Other design features are similar to ANV 1.
| STANDARD SPECIFICATION: | ||
|---|---|---|
| End Connection | : NPT / BSPP / BSPT | |
| Maximum working pressure | : 690 bar / 10,000 PSI at 100°C | |
| Material | : 316 SS / 316L SS / 304 SS / Carbon steel | |
| Gland Packing | : PTFE / Graphite | |
| MOC in accordance with NACE MR0175 is available on request. | ||
| Monel, Inconel, Hastelloy, Duplex steel are also available on request. | ||
|
SIZE
|
A
|
B
|
C(Sq)
|
WEIGHT (kg)
|
|
1/4"
|
93
|
55
|
28
|
0.44
|
|
3/8"
|
93
|
55
|
28
|
0.44
|
|
1/2"
|
111
|
67
|
38
|
0.85
|
These valves are designed for high pressure applications. These valves are also used in high pressure testing equipments. Other design features are similar to ANV 1.
|
SIZE
|
A
|
B
|
C(Sq)
|
WEIGHT (kg)
|
|
1/4"
|
93
|
65
|
28
|
0.45
|
|
3/8"
|
93
|
65
|
28
|
0.45
|
|
1/2"
|
111
|
76
|
38
|
0.88
|
