Aptek offers a wide range of pressure gauge accessories to suite the different instrumentation application.

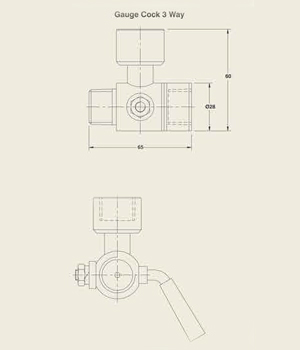

This cocks are use with the pressure gauge for isolation and drain purpose.
| STANDARD SPECIFICATION: | ||
|---|---|---|
| End Connection | : NPT / BSPP / BSPT | |
| Maximum working pressure | : 1500 PSI | |
| Material | : 316 SS / 316L SS / 304 SS / Brass | |
| Seal | : PTFE | |
| Size | : ¼" to ½" | |
As the name indicates, this device saves instruments from the over pressure. Gauge savers close at a set point protects instruments from over load.

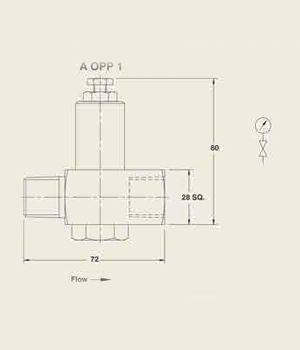

| STANDARD SPECIFICATION : Model AOPP 1 | ||
|---|---|---|
| Set Pressure | : 0.6 bar to 2 bars | |
| Maximum working pressure | : 400 BAR | |
| Material | : 316 SS | |
| Seal | : Viton | |
| Size | : ½" NPT M x F | |

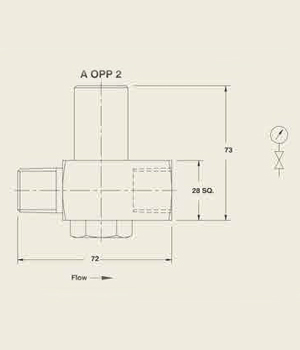

| STANDARD SPECIFICATION : Model AOPP 2 | ||
|---|---|---|
| Set Pressure | : 2.5 bar to 300 bars | |
| Maximum working pressure | : 400 BAR | |
| Material | : 316 SS | |
| Seal | : Viton | |
| Size | : ½" NPT M x F | |
With the help of variable orifice, these gauge snubbers protect pressure gauges by reducing fluctuations.
| STANDARD SPECIFICATION: | ||
|---|---|---|
| End Connection | : NPT / BSPP / BSPT | |
| Max Working Pressure | : 6000 PSI | |
| Max Temperature | : 120° C | |
| Material | : 316 SS / 316L SS / 304 SS / Brass | |
| Seal | : Viton | |
| Size | : ¼" to ½" NPT / BSP | |
|
SIZE
|
A
|
B
|
|
1/4” NPT
|
55
|
25
|
|
3/8”NPT
|
55
|
25
|
|
1/2”NPT
|
63
|
28
|
|
G1/2”
|
63
|
28
|

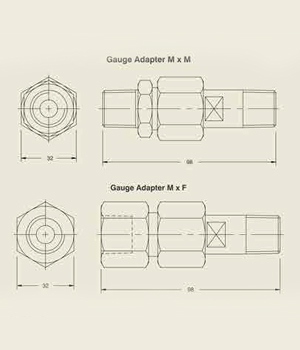

| STANDARD SPECIFICATION: | ||
|---|---|---|
| Max Working Pressure | : 6000 PSI | |
| Material | : 316 SS / 316L SS / 304 SS | |
| Size | : ½" NPT / BSPP / BSPT | |

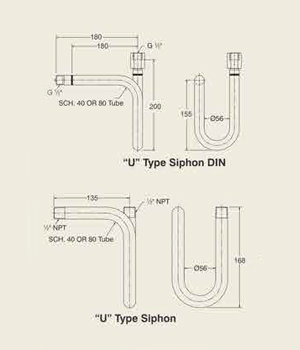

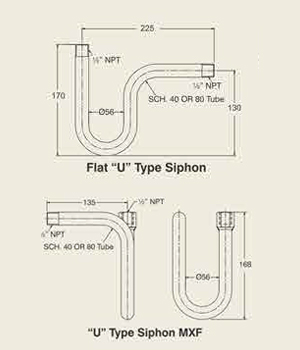

The siphon is used to protect the pressure gauges from the steam or high temperature fluid. Siphon reduces the temperature of the process fluid by dissipating the heat. It also helps to reduce the line surges fluctuations.
| STANDARD SPECIFICATION: | ||
|---|---|---|
| End Connection | : NPT / BSPP / BSPT | |
| Material | : 316 SS / 316L SS,CS / 304 SS | Size | : ¼", ⅜", ½" |

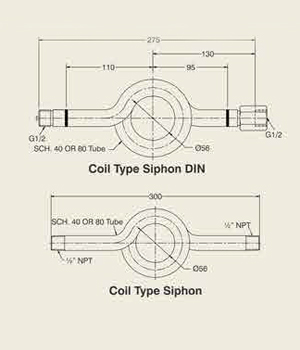

The siphon is used to protect the pressure gauges from the steam or high temperature fluid. Siphon reduces the temperature of the process fluid by dissipating the heat. It also helps to reduce the line surges fluctuations.
